GLOSSARY |

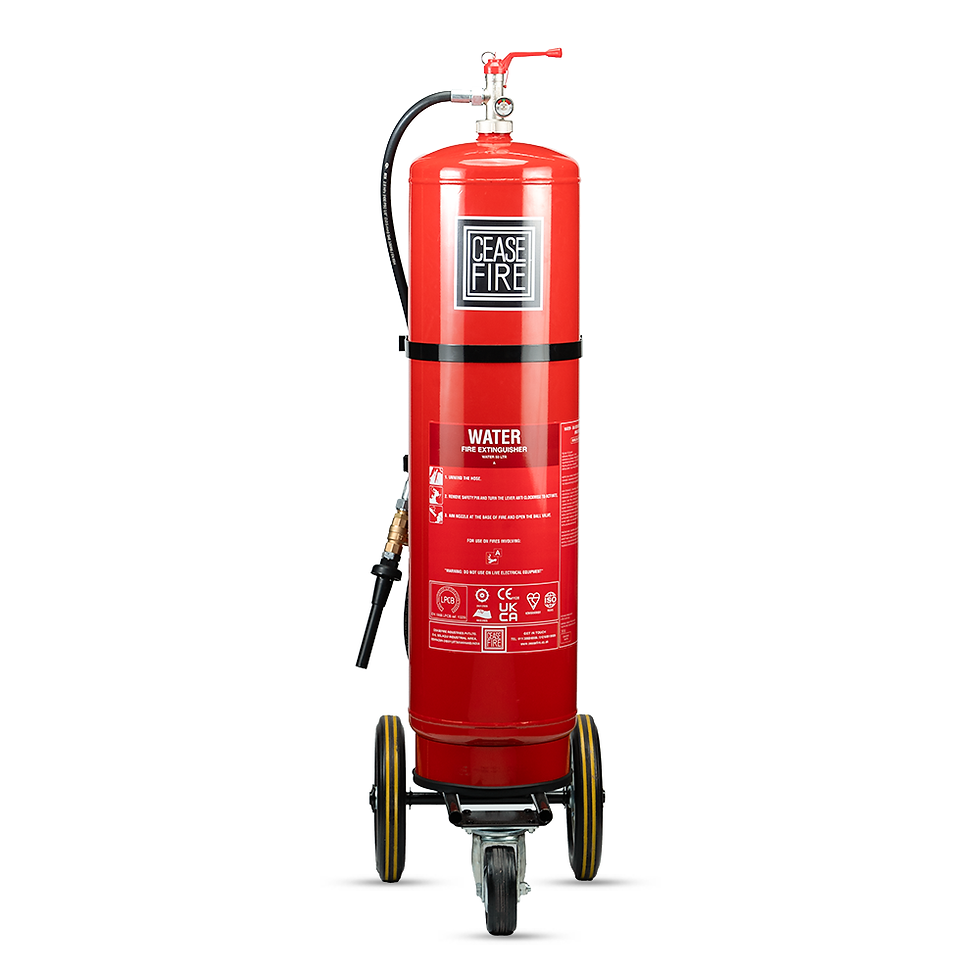

FIRE EXT WATER 50L MS SP RED |
FIRE EXT WATER 50L SS SP RED |
FIRE EXT WATER 100L MS SP RED |
FIRE EXT WATER 100L SS SP RED |
PRODUCT CODE |
CF-001031 |
CF-000755 |
CF-001033 |
CF-000886 |
AGENT |
WATER |
WATER |
WATER |
WATER |
AGENT CATEGORY |
WATER |
WATER |
WATER |
WATER |
THROW |
10 METERS |
10 METERS |
10 METERS |
10 METERS |
CERTIFICATION OR VERIFING BODY |
LPCB,BSI, EUROCERT,BRE GLOBAL |
LPCB,BSI, EUROCERT |
LPCB,BSI, EUROCERT,BRE GLOBAL |
LPCB,BSI, EUROCERT |
CERTIFICATION TYPE |
EN1866, PED, EU MED |
EN1866, PED |
EN1866, PED, EU MED |
EN1866, PED |
LPCB MARKING |
YES |
YES |
YES |
YES |
KITEMARK MARKING |
YES |
YES |
YES |
YES |
CE MARKING |
YES |
YES |
YES |
YES |
EU MED/WHEEL MARKING |
YES |
NO |
YES |
NO |
UKCA-MER |
YES |
NO |
YES |
NO |
GROSS WEIGHT (APPROX) |
102.50 KG |
91.50 KG |
178.50 KG |
158.20 KG |
NET CONTENTS |
47.50 TO 50.00 LTR |
47.50 TO 50.00 LTR |
95.00 TO 100.00 LTR |
95.00 TO 100.00 LTR |
HEIGHT OF FIRE EXT. (APPROX) |
1510 MM |
1510 MM |
1520 MM |
1520 MM |
DISCHARGE MECHANISM |
OPERATING LEVER (BALL VALVE) |
OPERATING LEVER (BALL VALVE) |
OPERATING LEVER (BALL VALVE) |
OPERATING LEVER (BALL VALVE) |
APPLICABLE ON FIRES |
CLASS A FIRE |
CLASS A FIRE |
CLASS A FIRE |
CLASS A FIRE |
FIRE RATINGS |
A |
A |
A |
A |
CAN CONSTRUCTION |
DRAWN ROLLED AND MIG WELDED |
DRAWN ROLLED AND MIG WELDED |
DRAWN ROLLED AND MIG WELDED |
DRAWN ROLLED AND MIG WELDED |
VALVE / CAP CONSTRUCTION |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
FORGING AND MACHINING |
INTERNAL COATING |
EPOXY POWDER COATING |
NOT APPLICABLE |
EPOXY POWDER COATING |
NOT APPLICABLE |
EXTERNAL COATING |
EPOXY POLYESTER POWDER COATING |
EPOXY POLYESTER POWDER COATING |
EPOXY POLYESTER POWDER COATING |
EPOXY POLYESTER POWDER COATING |
WARRANTY IN YEARS |
5 |
5 |
5 |
5 |
G.A. DRAWING NUMBER |
CF/SP-W50-MS/GA/04 |
CF/SP-W50-SS/GA/02 |
CF/SP-W100-MS/GA/02 |
CF/SP-W100-SS/GA/02 |
WORKING PRESSURE |
15BAR |
15BAR |
15BAR |
15BAR |
DIA. OF SHELL (OD) |
300.0 MM |
300.0 MM |
400.0 MM |
400.0 MM |
OPERATING TEMPERATURE |
5OC TO +60OC |
5OC TO +60OC |
5OC TO +60OC |
5OC TO +60OC |
HYDROSTATIC TEST PRESSURE |
30BAR |
30BAR |
30BAR |
30BAR |
CYLINDER MATERIAL SPEC. |
STEEL CR2(DC01) |
SS 304 (1.4301) |
STEEL HR3(DD13) |
SS 304 (1.4301) |
BODY THICKNESS (APPROX) |
3.0 MM |
1.8 MM |
3.5MM |
2.0 MM |
