GLOSSARY |

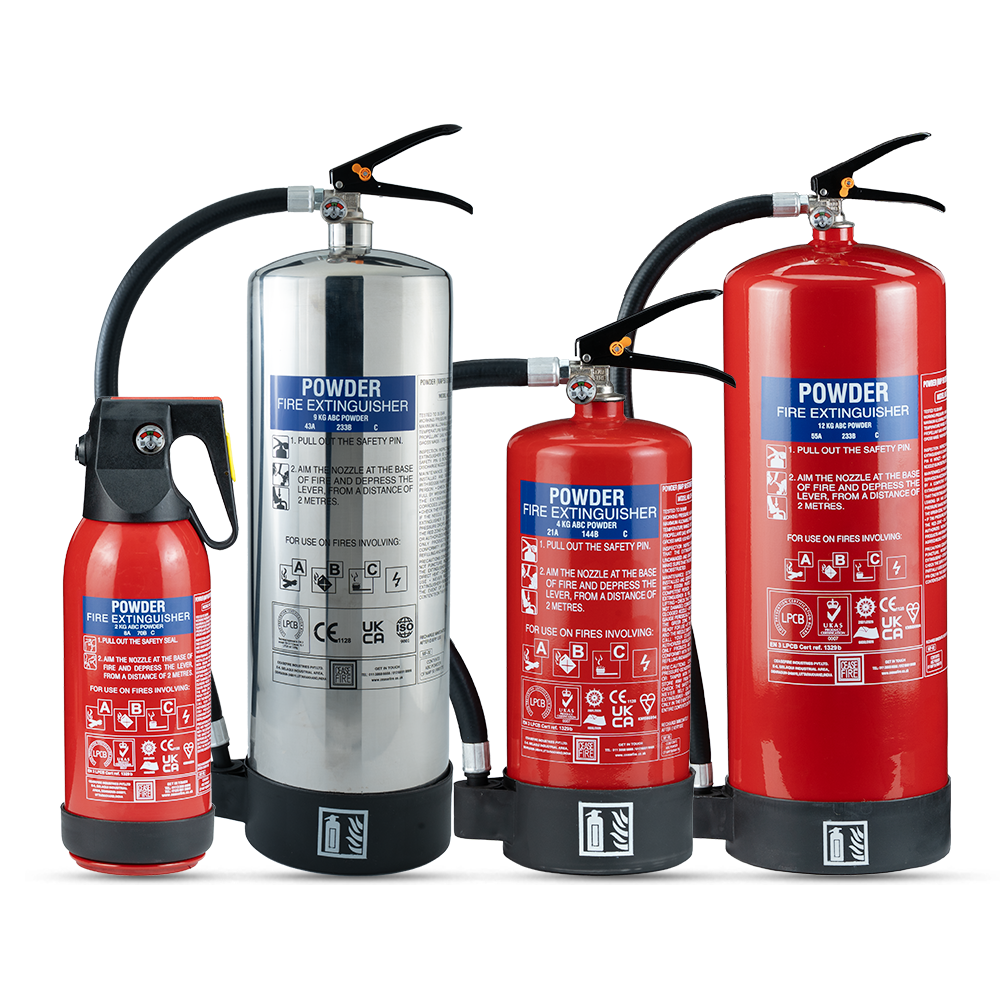

FIRE EXT MAP50 2KG MS SP RED (SQUEEZE GRIP) |
FIRE EXT MAP50 2KG MS SP RED (GUN HOUSING) |
FIRE EXT MAP50 4KG MS SP RED |
FIRE EXT MAP50 6KG MS SP RED |
FIRE EXT MAP50 9KG MS SP RED |
FIRE EXT MAP50 6KG SS SP CHROME |
FIRE EXT MAP50 9KG SS SP CHROME |

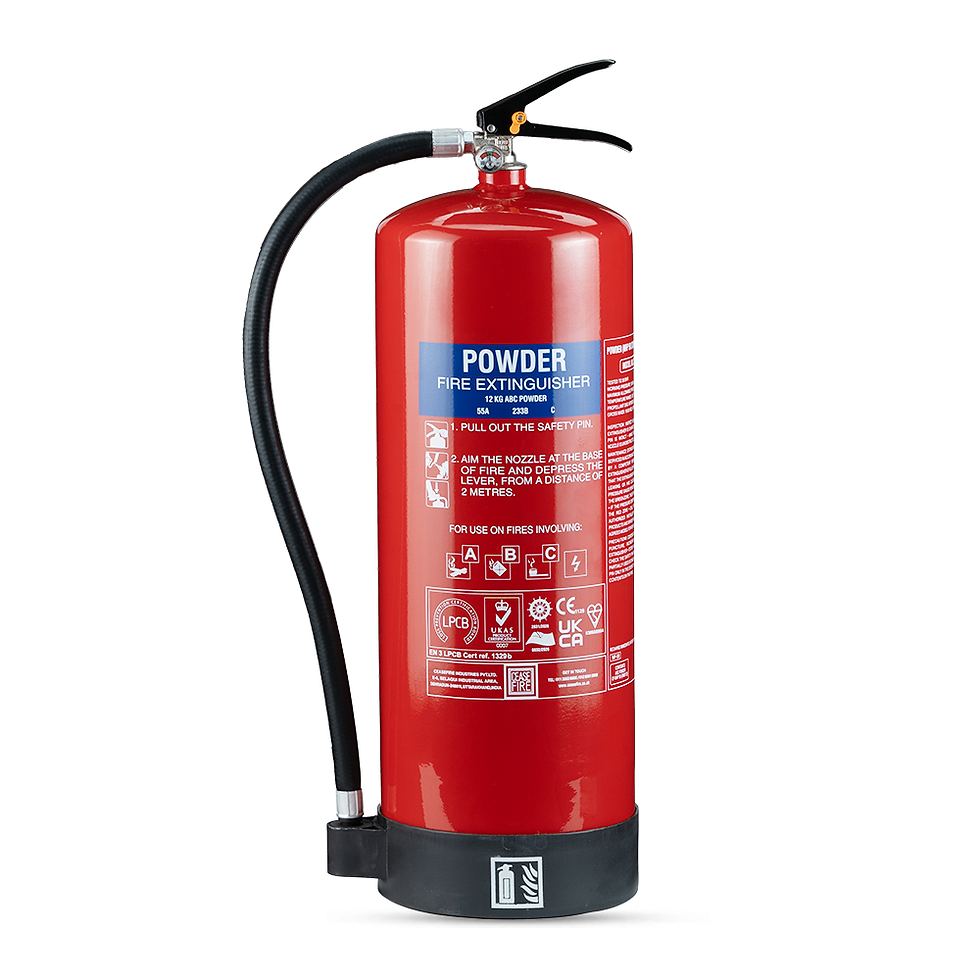

FIRE EXT MAP50 12KG MS SP RED |
PRODUCT CODE |
CF-000804 |
CF-000731A |
CF-000732A |
CF-000733A |
CF-000734A |
CF-000990 |
CF-000991 |
CF-000735A |
AGENT CATEGORY |
ABC POWDER |
ABC POWDER |
ABC POWDER |
ABC POWDER |
ABC POWDER |
ABC POWDER |
ABC POWDER |
ABC POWDER |
AGENT |
ABC POWDER MAP 50 |
ABC POWDER MAP 50 |
ABC POWDER MAP 50 |
ABC POWDER MAP 50 |
ABC POWDER MAP 50 |
ABC POWDER MAP 50 |
ABC POWDER MAP 50 |
ABC POWDER MAP 50 |
STORED PRESSURE / CARTRIDGE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
STORED PRESSURE |
CERTIFICATION OR VERIFING BODY |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT,LPCB,BSI,BRE GLOBAL |
EUROCERT |
EUROCERT |
EUROCERT,LPCB,BRE GLOBAL |
CERTIFICATION TYPE |
PED,EN3, EU MED |
PED,EN3, EU MED |
PED,EN3, EU MED |
PED,EN3, EU MED |
PED,EN3, EU MED |
PED,EN3 |
PED,EN3 |
PED,EN3, EU MED |
LPCB MARKING |
YES |
YES |
YES |
YES |
YES |
YES WITH T&C (16.5) |
YES WITH T&C (16.5) |
YES |
KITEMARK MARKING |
YES |
YES |
YES |
YES |
YES |
NO |
NO |
NO |
CE MARKING |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
UKCA- MER |
YES |
YES |
YES |
YES |
YES |
NO |
NO |
YES |
WHEEL / MED MARKING |
YES |
YES |
YES |
YES |
YES |
NO |
NO |
YES |
THROW |
3.5 METERS |
3.5 METERS |
4 METERS |
6 METERS |
7 METERS |
6 METERS |
7 METERS |
7 METERS |
GROSS WEIGHT (APPROX) |
3.40KG |
3.40 KG |
6.50 KG |
9.30 KG |
13.40 KG |
9.5 KG |
13.30 KG |
17.70KG |
NET MASS |
1.94 TO 2.06 KG |
1.94 TO 2.06 KG |
3.92 TO 4.08 KG |
5.88 TO 6.12 KG |
8.82 TO 9.18 KG |
5.88 TO 6.12 KG |
8.82 TO 9.18 KG |
11.76 TO 12.24 KG |
DISCHARGE MECHANISM |
SQUEEZE GRIP |
THUMB TRIGGERED |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
SQUEEZE GRIP |
APPLICABLE ON FIRES |
A, B, C, & ELECTRICAL STARTED FIRE |
A, B, C, & ELECTRICAL STARTED FIRE |
A, B, C, & ELECTRICAL STARTED FIRE |
A, B, C, & ELECTRICAL STARTED FIRE |
A, B, C, & ELECTRICAL STARTED FIRE |
A, B, C & ELECTRICAL STARTED FIRE. |
A, B, C & ELECTRICAL STARTED FIRE. |
A, B, C, & ELECTRICAL STARTED FIRE |
FIRE RATINGS |
8A, 70B |
8A, 70B |
21A, 144B |
27A, 183B |
43A, 233B |
27A, 183B |
43A, 233B |
55A, 233B |
EXTERNAL COATING |
EPOXY POLYESTER POWDER |
EPOXY POLYESTER POWDER |
EPOXY POLYESTER POWDER |
EPOXY POLYESTER POWDER |
EPOXY POLYESTER POWDER |
CHROME FINISH |
CHROME FINISH |
EPOXY POLYESTER POWDER |
HELIUM LEAK DETECTION TESTING |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
WARRANTY IN YEARS |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
WORKING PRESSURE |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
15 BAR |
HYDROSTATIC TEST PRESSURE |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
35 BAR |
DIA. OF SHELL (OD) |
108 MM |
108 MM |
140 MM |
160 MM |
175 MM |
160 MM |
175 MM |
204 MM |
BODY THICKNESS (APPROX) |
1.4 MM |
1.4 MM |
1.2 MM |
1.4 MM |
1.4 MM |
1.5 MM |
1.5 MM |
1.6 MM |
CYLINDER MATERIAL SPEC. |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
STEEL CR2(DC01) |
SS 304 (1.4301) |
SS 304 (1.4301) |
STEEL CR2(DC01) |
OPERATING TEMPERATURE |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
-30OC TO +60OC |
SCHRAEDER VALVE |
YES |
NOT APPLICABLE |
YES |
YES |
YES |
YES |
YES |
YES |
PRESSURE RELIEF VALVE |
YES |
NOT APPLICABLE |
YES |
YES |
YES |
YES |
YES |
YES |
